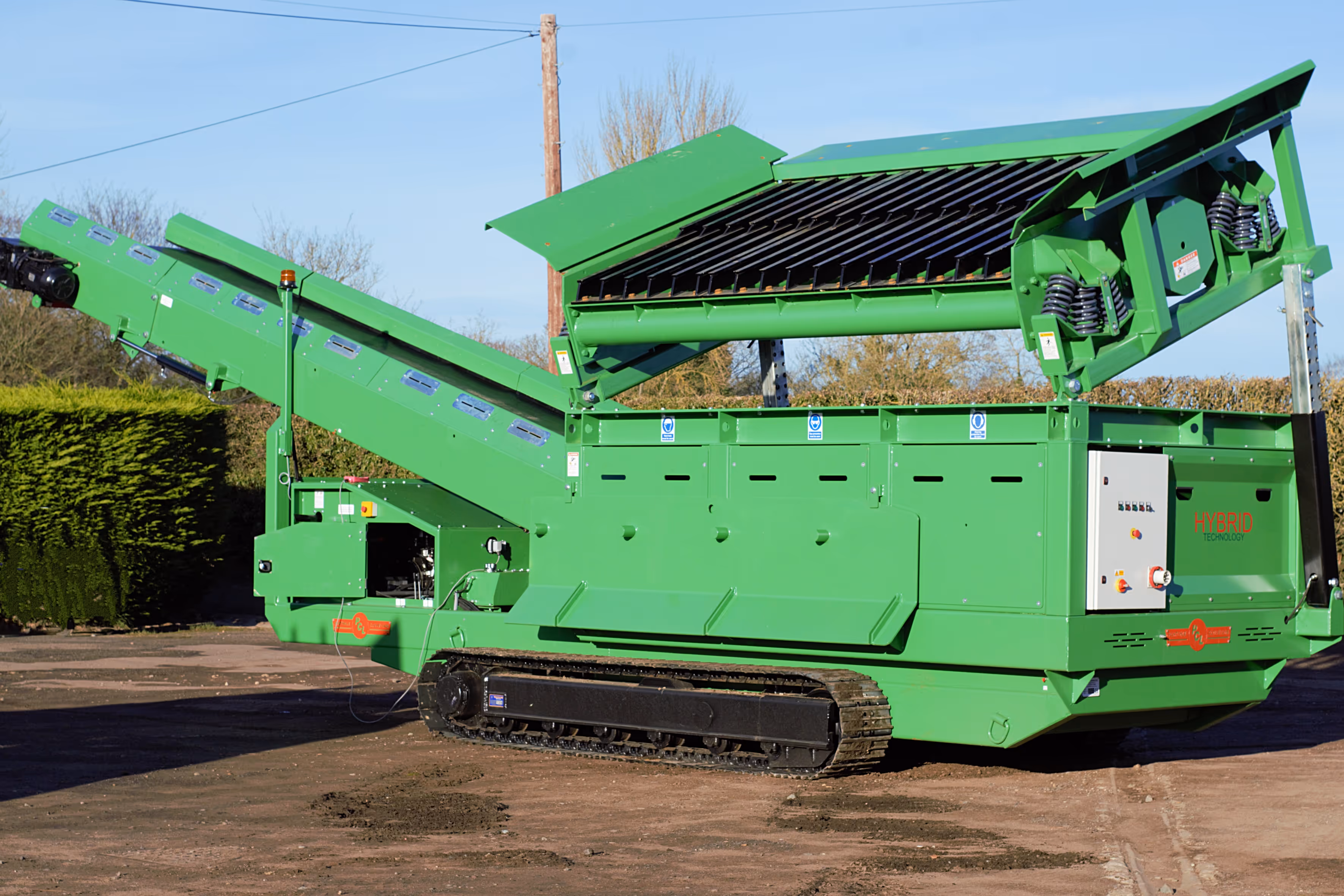

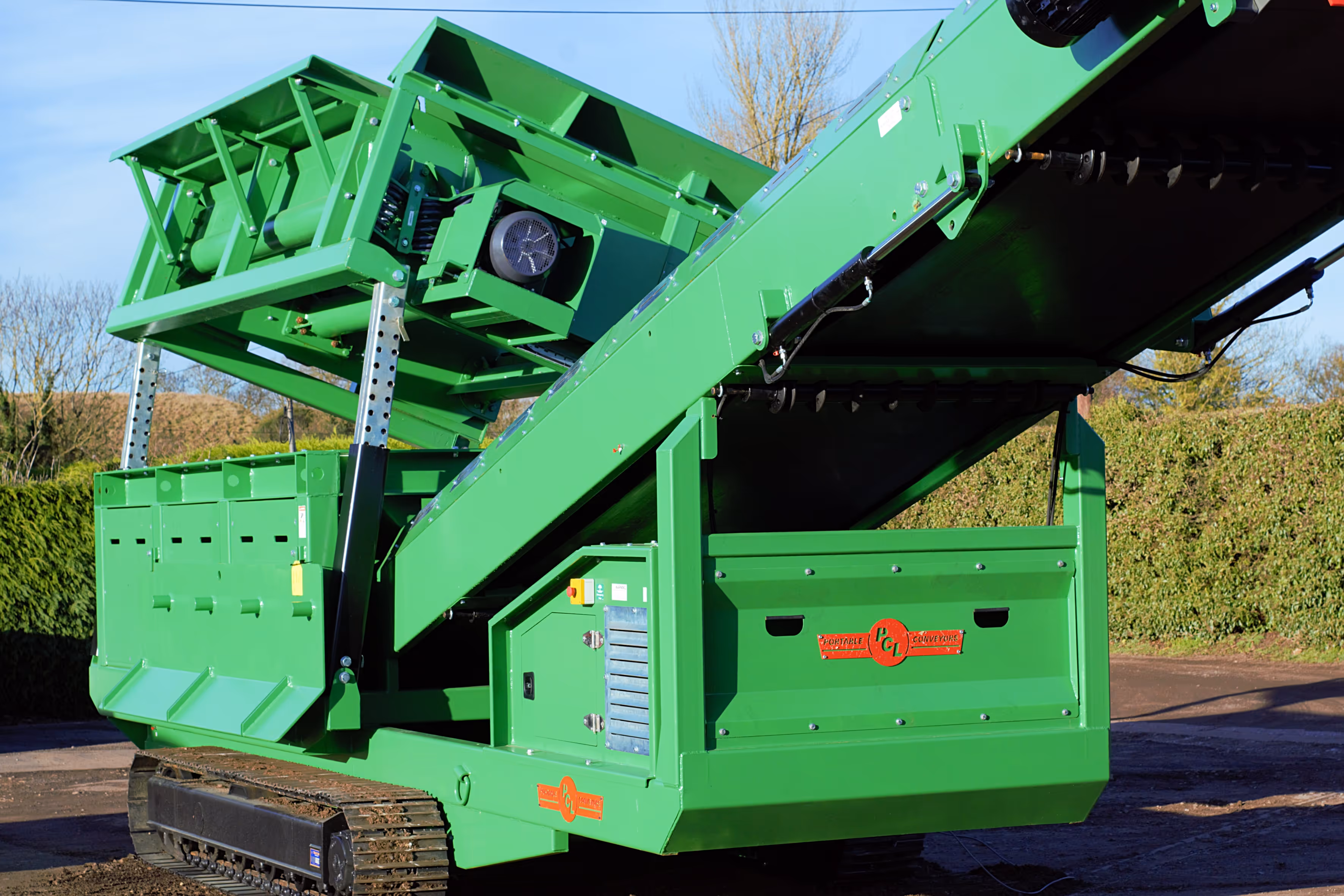

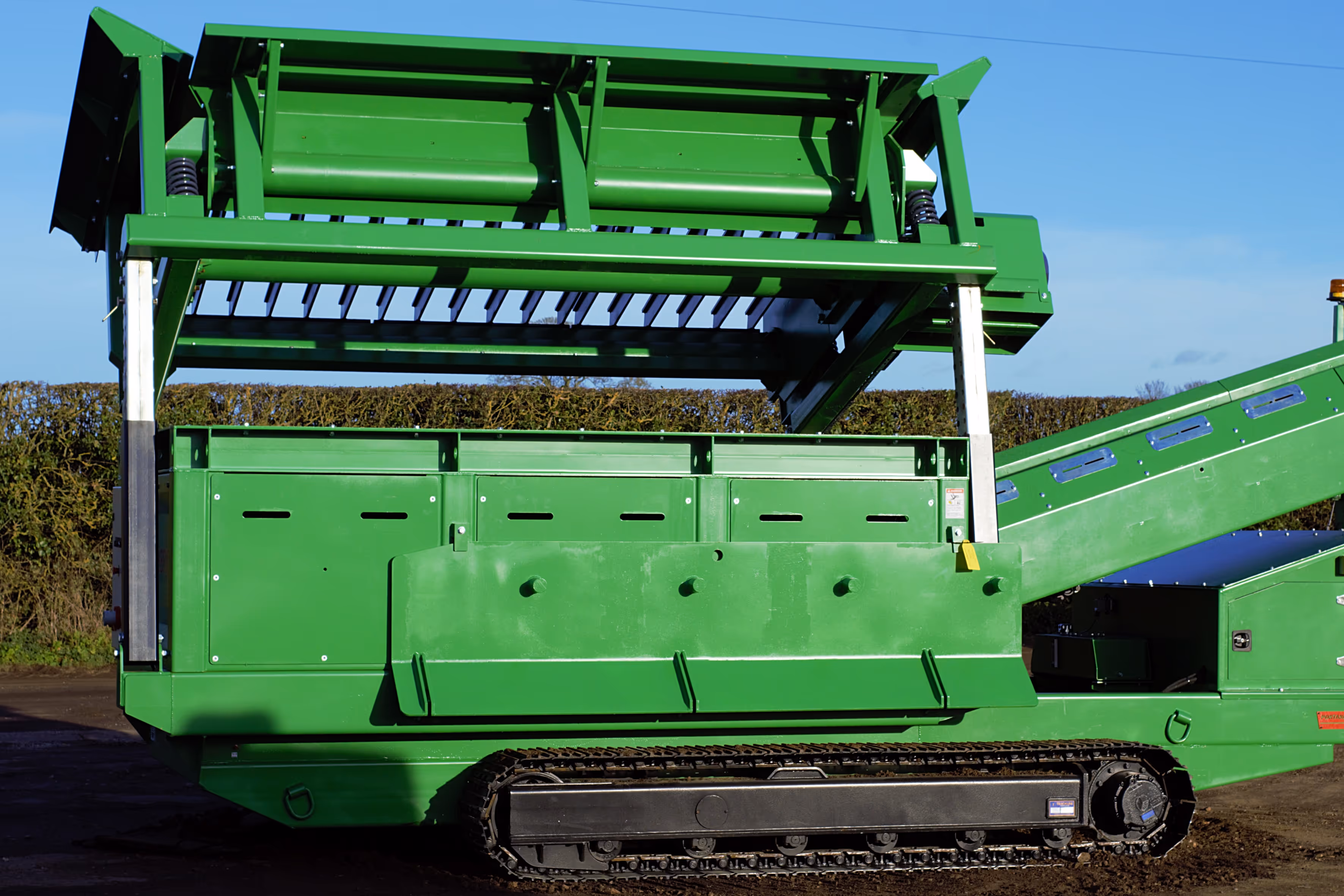

TRACKED GRID

Stage V - CAT C2.2 55kW (74hp),

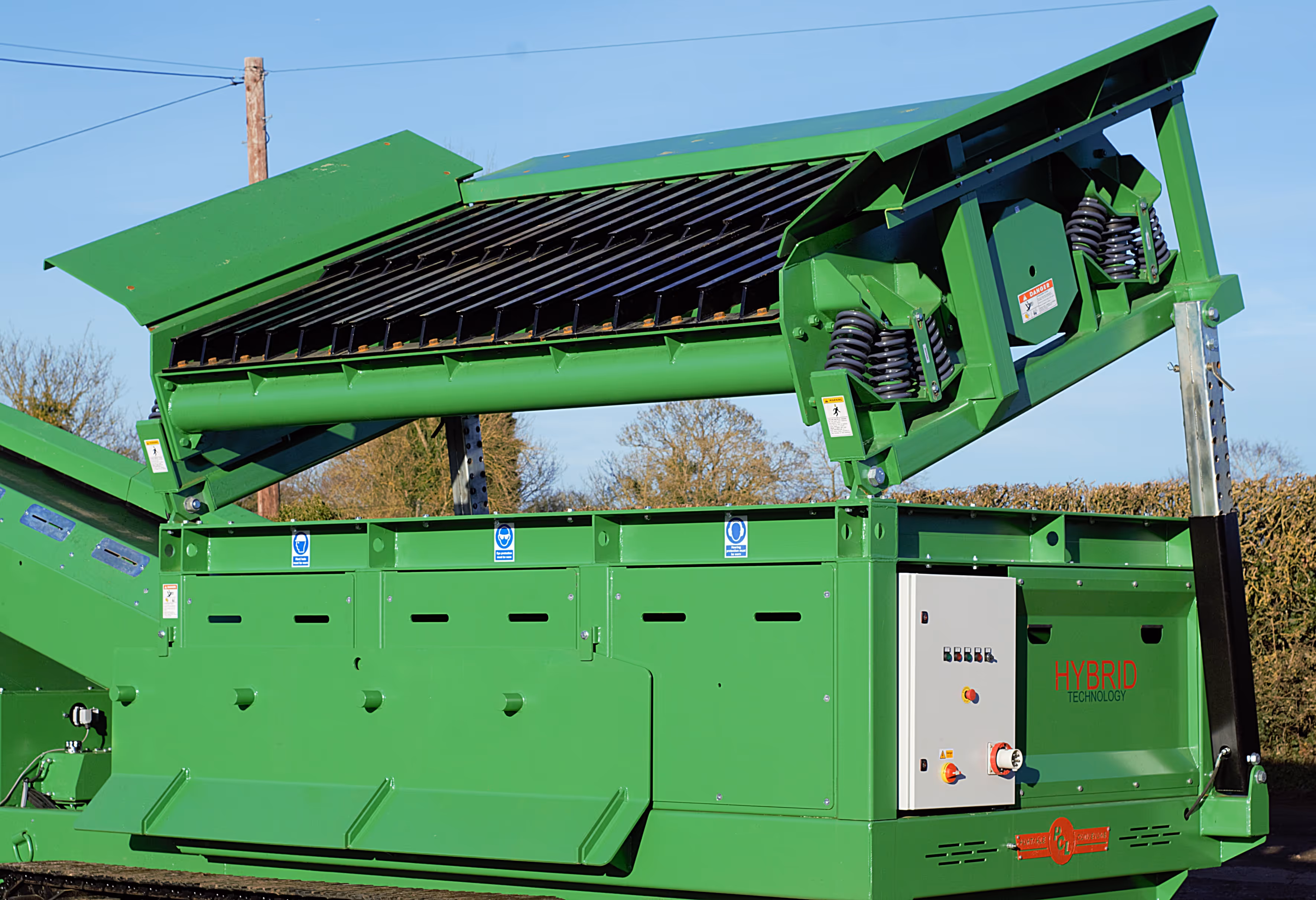

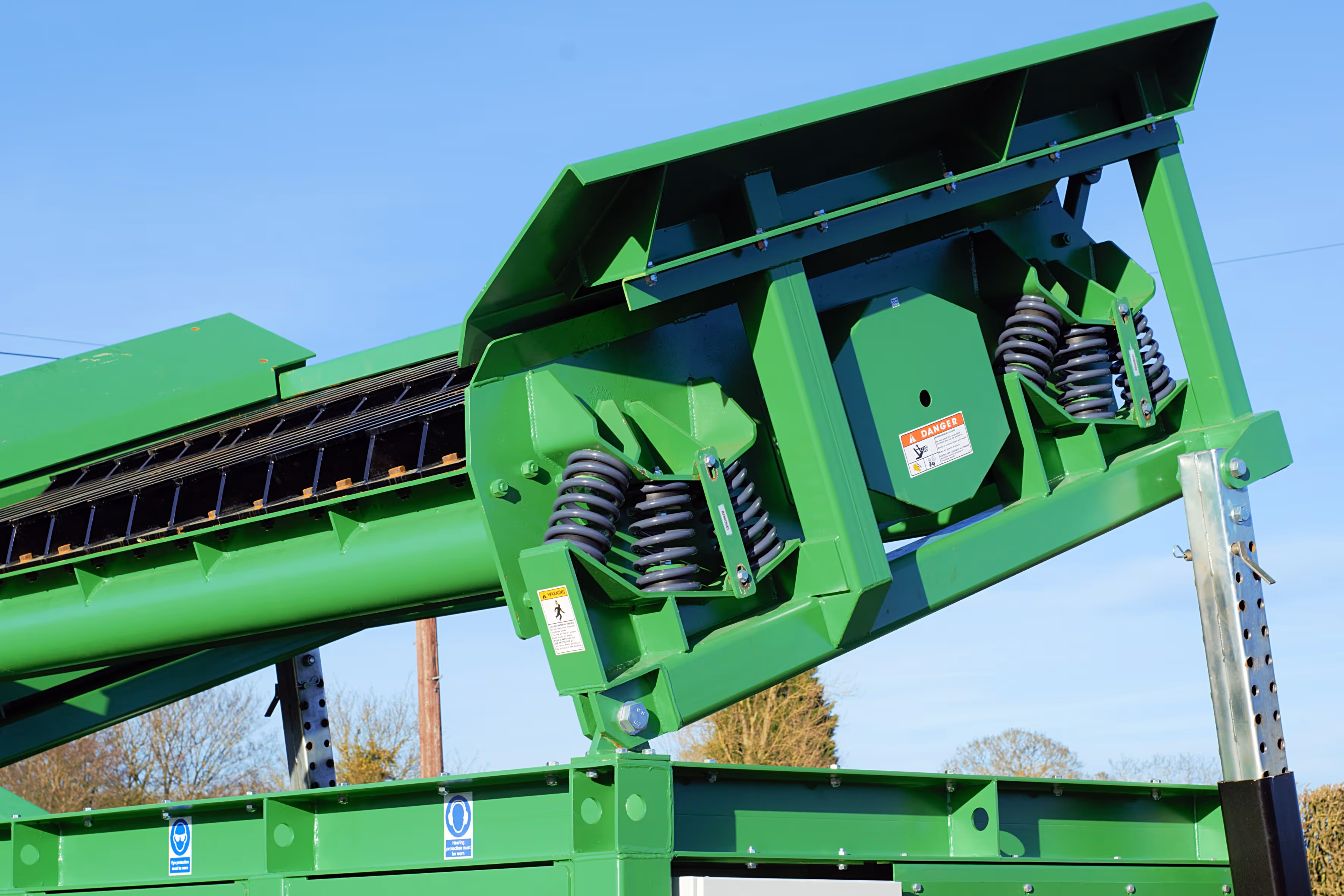

            Twin deckvibrating grid 3.35m x 2.6m (11'x8'7") screening area,

            150mm(6") step level abrasion resistant plate T bars on top deck,

            60mm (23/8”) bottom deck woven mesh,

            Hydraulicvariable grid angle,

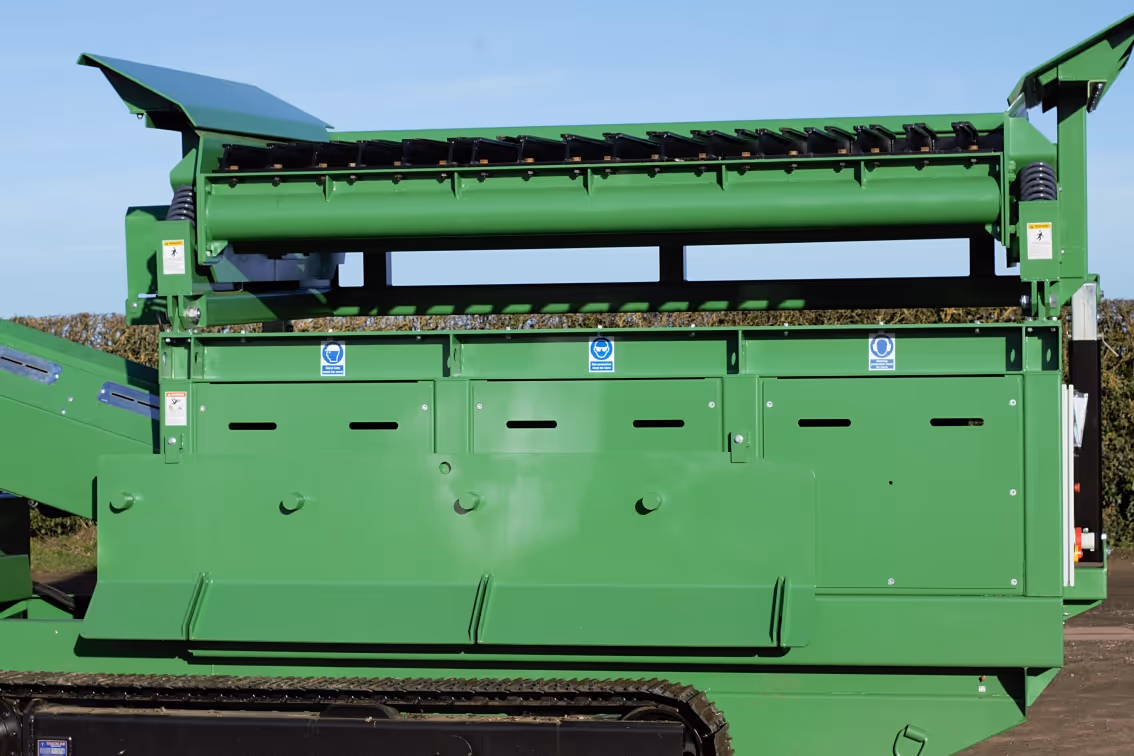

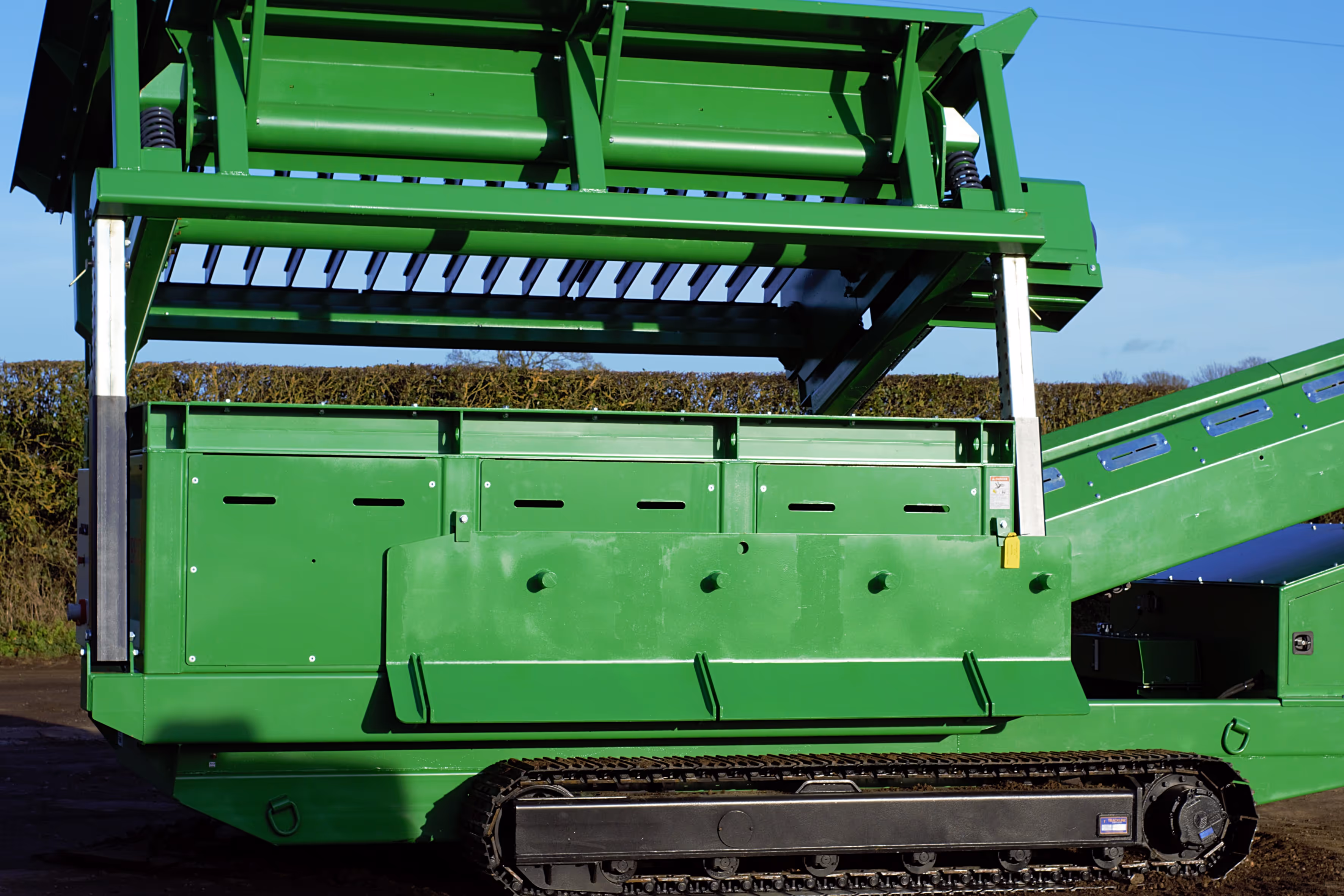

            Heavyduty feed shroud supported from grid subframe,

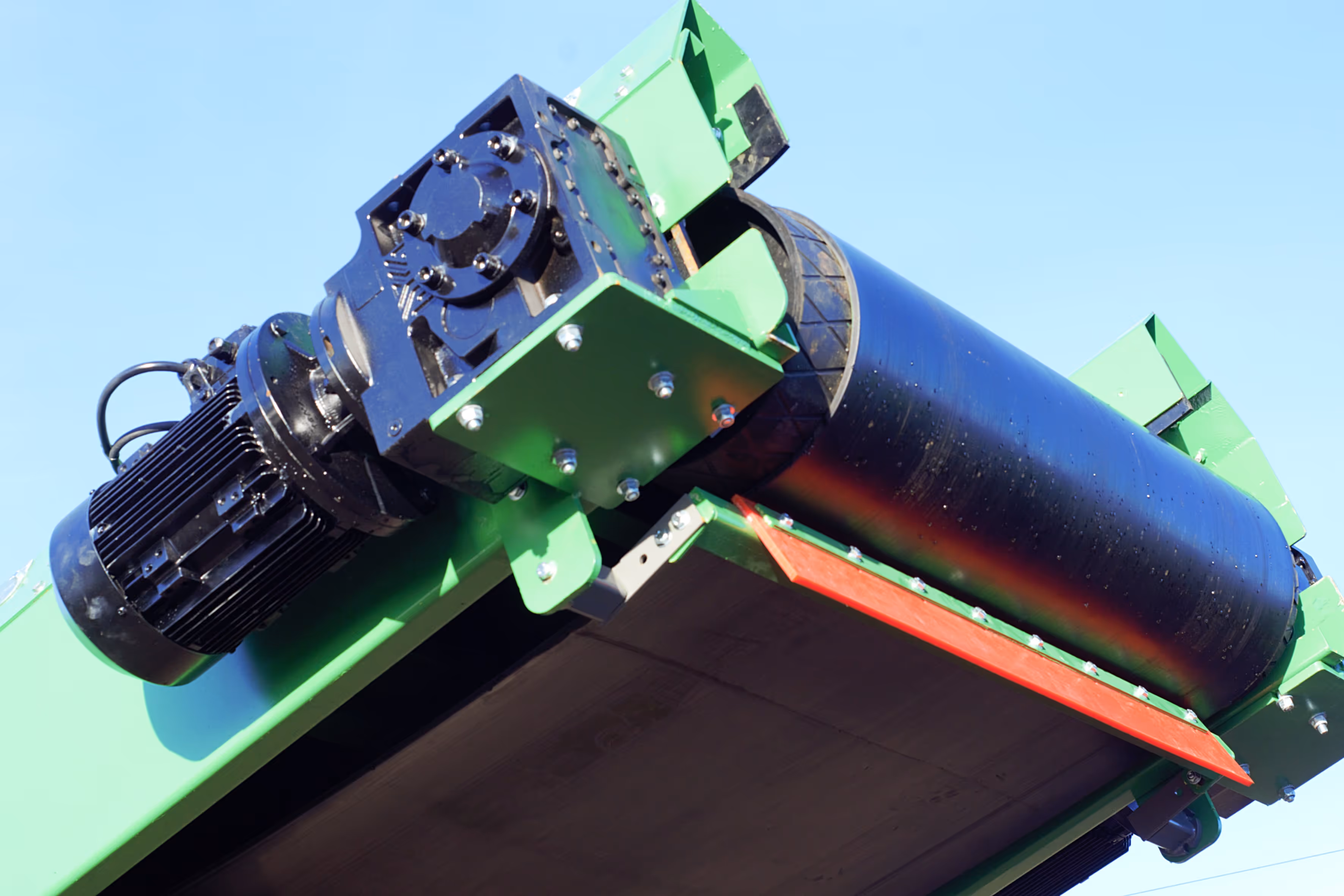

            1200mm(48") wide fines discharge conveyor,

            Hydraulicfolding of conveyor,

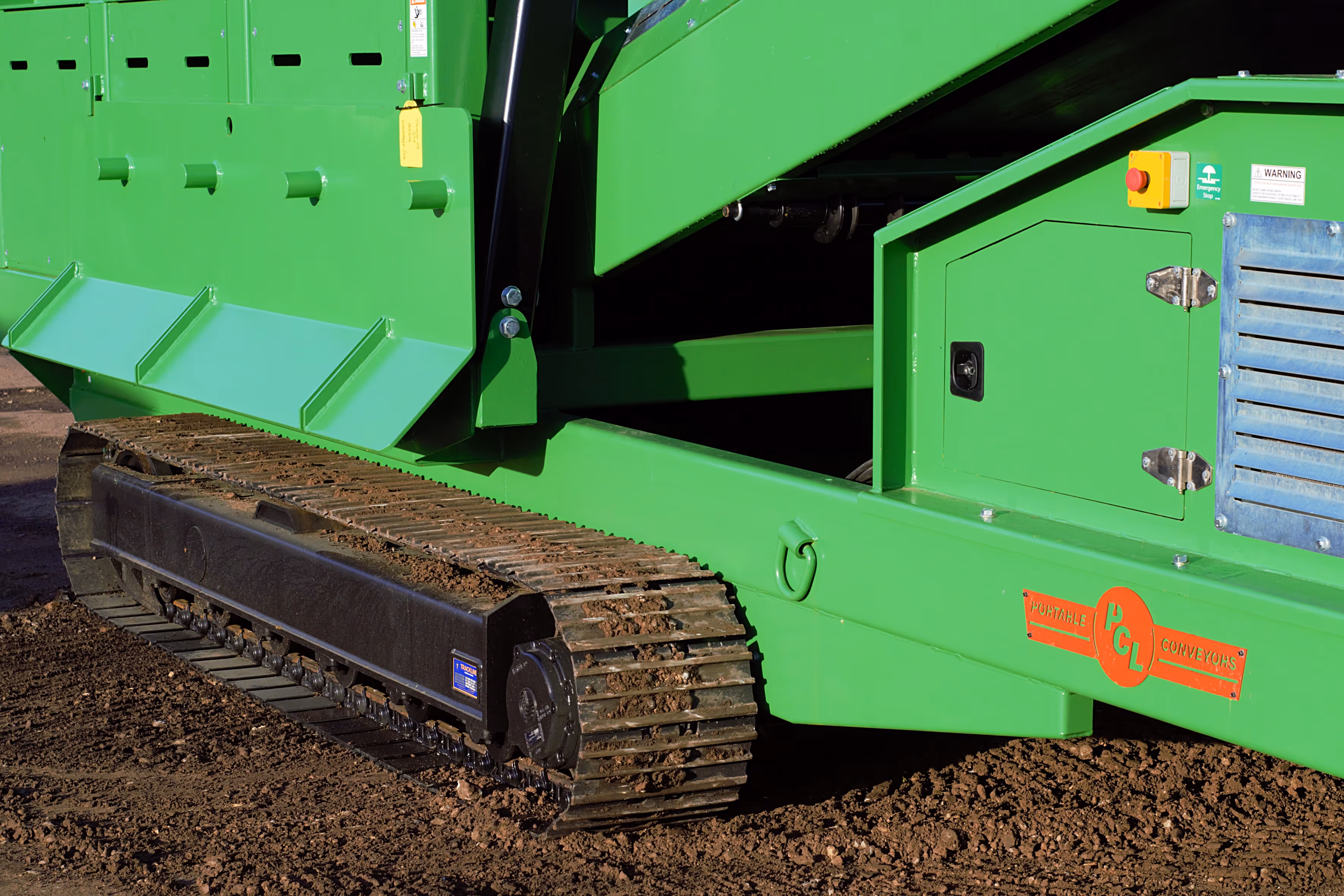

            Heavyduty deflector doors to protect tracks,

            Controloperation of tracks via hand-held set,

            1nrdedicated Stockpiler drive -Approx 60 Litres/min,

            Emergencystops, Control operation of tracks via hand held set,

            T-LinkTelemetry System fitted c/w 7 years data,

            Safetyguards in compliance with machinery directive, fleetCMD 12 month subscription, PDIKit, Signwriting

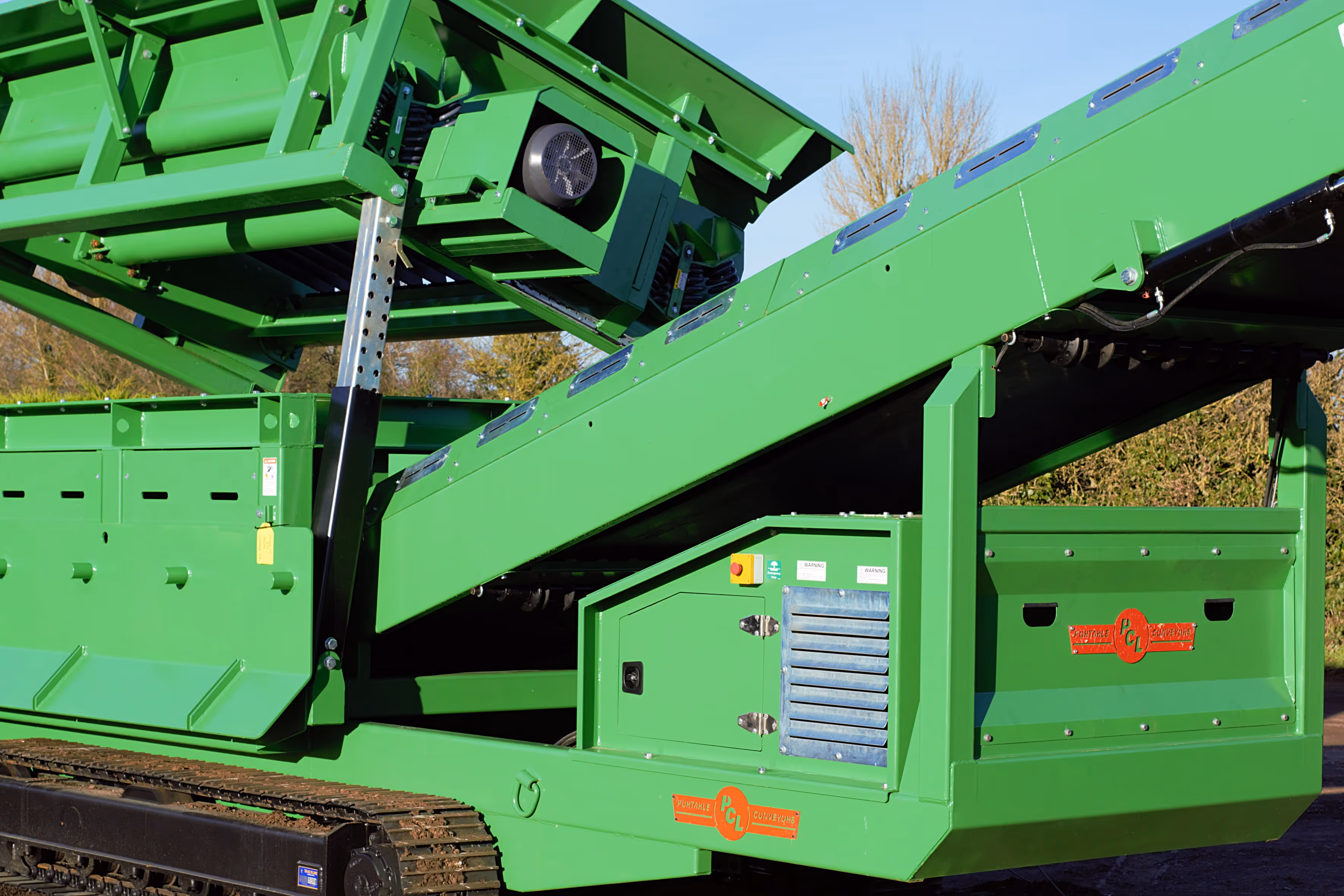

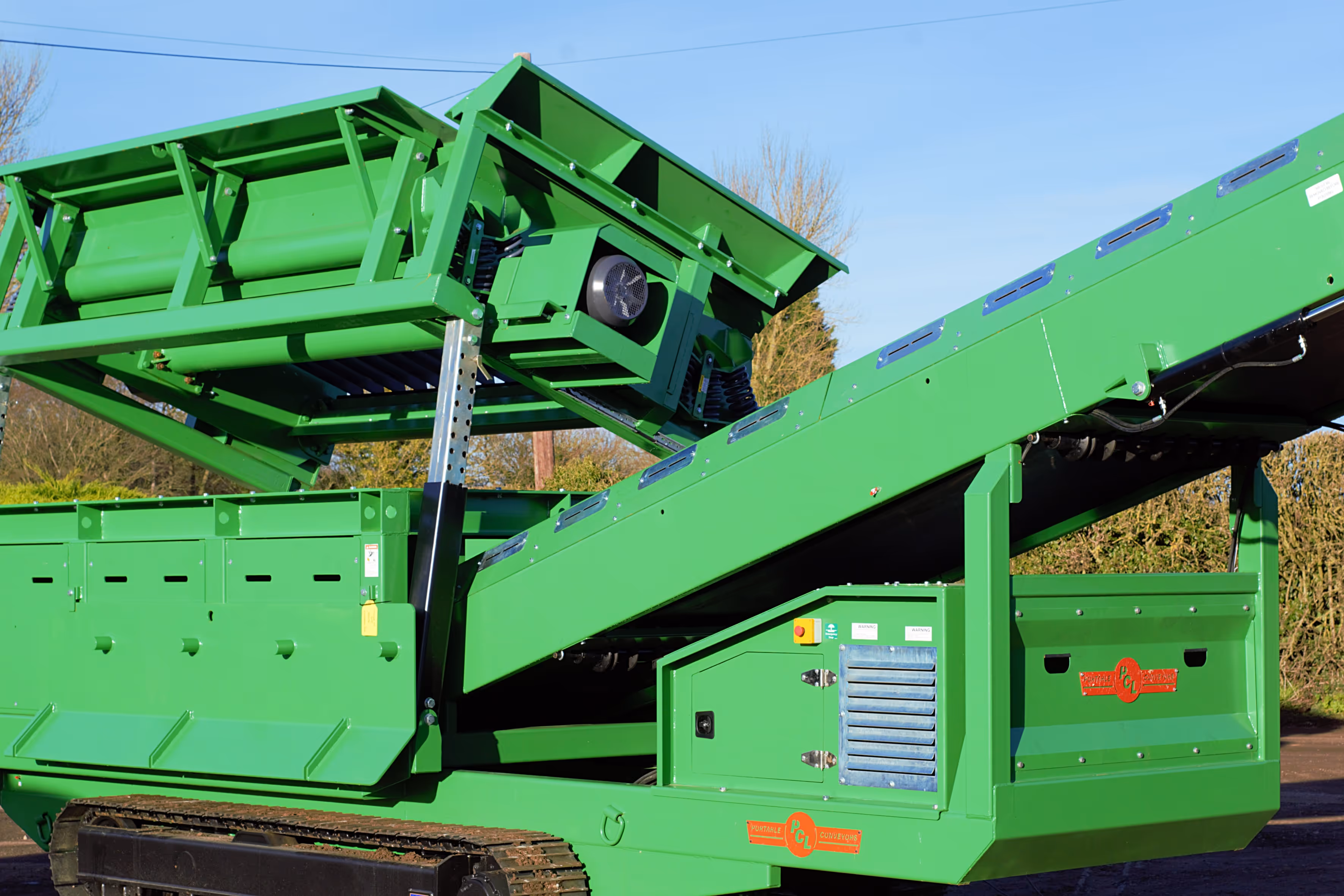

            Bolt on MAX55kW electric/hydraulic powerpack

c/w      Panel prewired to motor

‍
