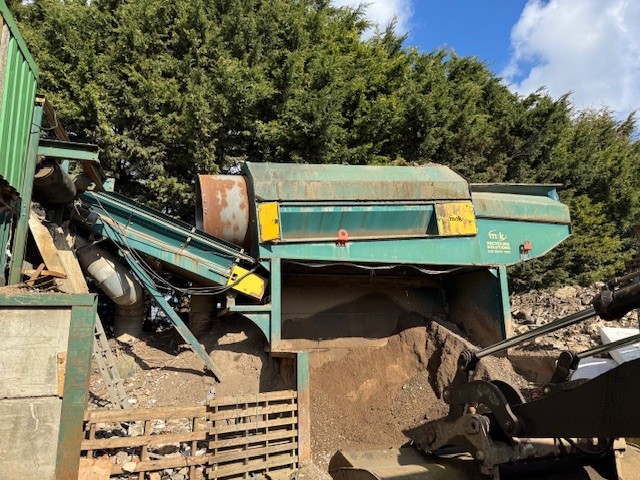

3/1500 TROMMEL, VIBRATORY FEED HOPPER AND OUTFEED CONVEYOR

Used Trommel and outfeed conveyor

M&K All-in-one 3x900 Vibratory feed hopper with combined 3/1500 trommel and skid frame

3m x 2m loading hopper with 600mm extension collar

3m x 900m vibratory feed tray

2x 3ph 2.6kW 6pole vibratory motors

Hardox liner plate

4.8m x 1.5m diameter trommel screen assembly

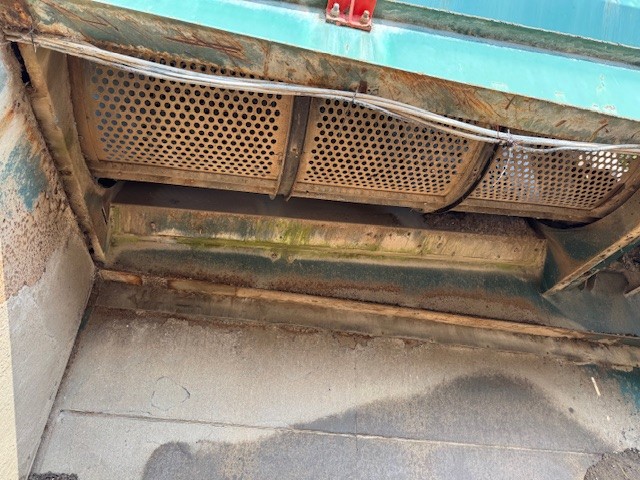

3m x 1.5m screenng area with bolted perforated plates

2x 3ph 415v 5.5kW 4pole motor gear units

Heavy duty subframe with frame assembly to floor

Including fines collection bay to achieve 2.8m height under trommel

‍

3m x 1000mm channel outfeed conveyor

3m centre x 1000mm wide vulcanised belt

3ph 3kW electric drive

Feed boot

Overhead support frame with full length anti-spill plates

‍

This is part of a complete handpicking set-up listed elsewhere on this site.
