COMPLETE PICKING LINE

Used Recycling System

M&K All-in-one 3x900 Vibratory feed hopper with combined 3/1500 trommel and skid frame

3m x 2m loading hopper with 600mm extension collar

3m x 900m vibratory feed tray

2x 3ph 2.6kW 6pole vibratory motors

Hardox liner plate

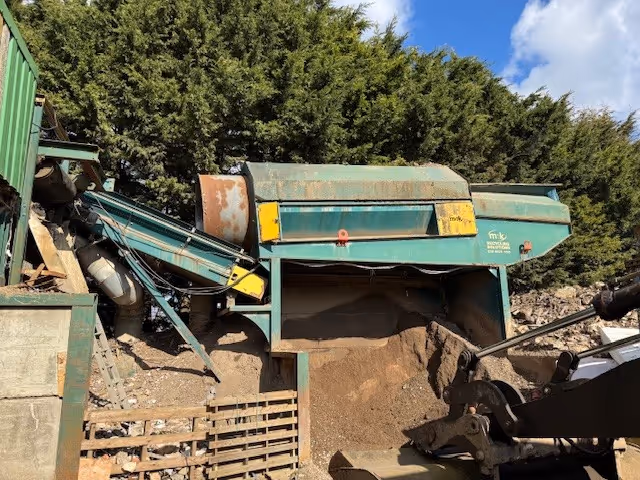

4.8m x 1.5m diameter trommel screen assembly

3m x 1.5m screenng area with bolted perforated plates

2x 3ph 415v 5.5kW 4pole motor gear units

Heavy duty subframe with frame assembly to floor

Including fines collection bay to achieve 2.8m height under trommel

‍

3m x 1000mm channel outfeed conveyor

3m centre x 1000mm wide vulcanised belt

3ph 3kW electric drive

Feed boot

Overhead support frame with full length anti-spill plates

‍

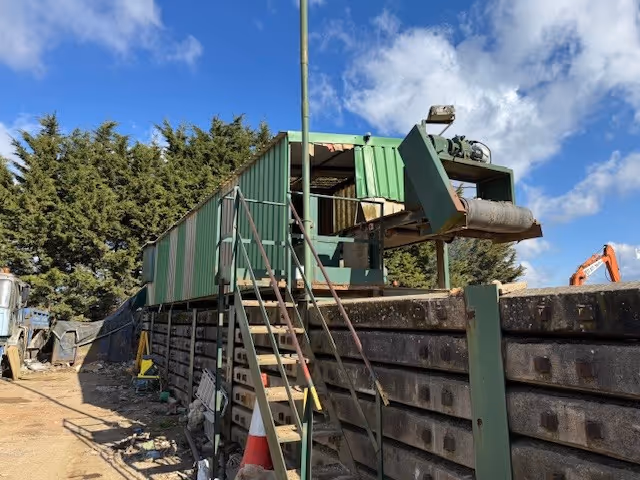

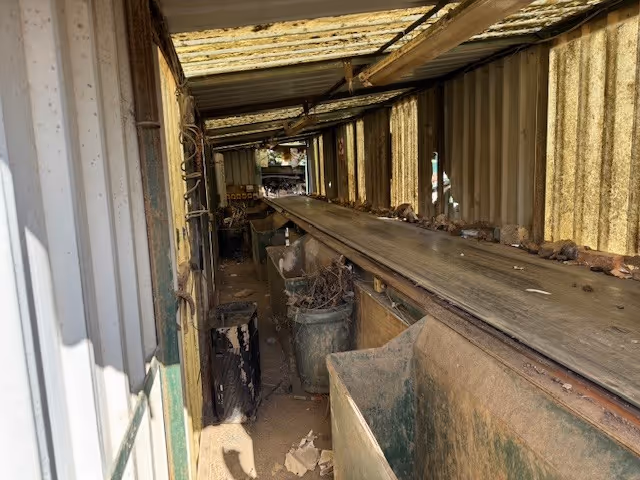

17m x 1000 handpicking conveyor (single sided)

4 recovery positions

17mm drum centres 1000mm wide belt

Single sided access catwalk with access ladder

Unit designed to fit onto channel pre-cast/fabricated walls

‍

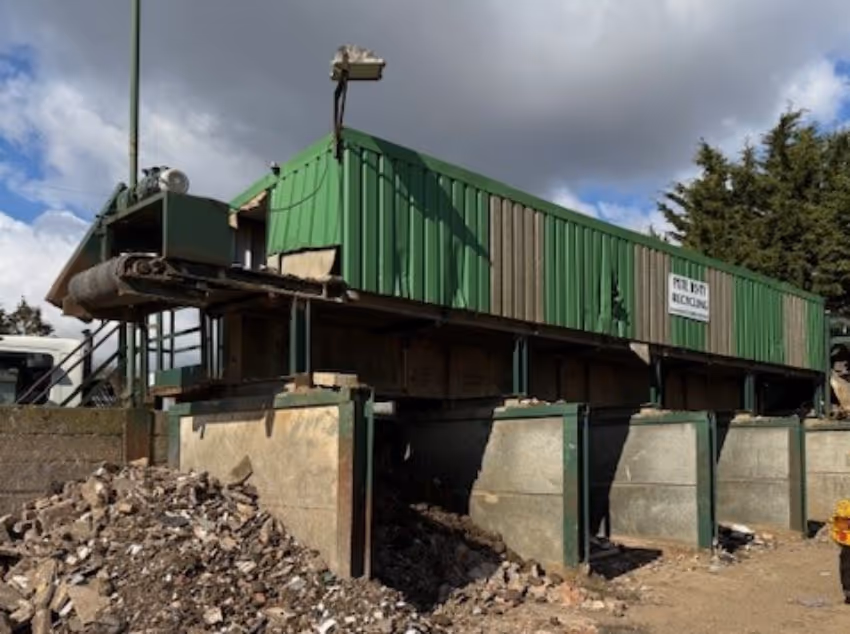

Canopy frame with box profile cladding

3ph 415kW drive with variable speed control

‍

Electric control panel

With controls for feeder, variable speed

Trommel

Output belt

Picking line

Magnet

Fan blower

‍

NB There is also a good overband magnet which can be seen running

Also available: fan blower with duct and air knife

‍

This is a good, used, system which can be seen running.

Ideally to be sold as a whole but may consider splitting

‍

Individual items listed above may be listed separately.
